HUUM Heater Package

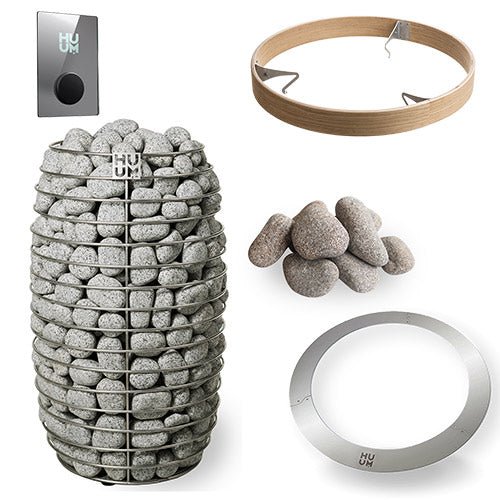

Introducing the ultimate HUUM Heater Package specifically designed for your Haljas Single Luxury sauna. This complete system ensures you have every component for a superior and safe sauna environment. It features the acclaimed HUUM HIVE Mini 11kW electric sauna heater, renowned for its efficient heating and classic aesthetic. Manage your sauna's temperature and settings effortlessly with the stylish UKU Mirror control unit, offering modern convenience. For a seamless built-in look and user protection, the package integrates the HUUM Embedding Flangeand HUUM Safety Rail, along with the necessary sauna stones. This package is precisely calibrated for use in sauna rooms with a volume up to 706 cubic feet (CF

HUUM HIVE Mini 11

• Elegant design
• 240V/1PH operation
• For sauna rooms from 353 to 706 cu. ft.
• Works with UKU controls (sold separately)
• Works with UKU extension box (sold separately)
• 330-pound stone capacity (sold separately, Requires 10 boxes) or 265lbs with use of HIVE air tunnel
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Floor model with adjustable legs
• Designed, engineered, and made in Estonia
• Dimensions: 18.1" Diameter (460mm) x 29.5" H (750mm)
• SGS Listed
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

HUUM UKU Control (Mirror)

• Stylish Mirror control display panel
• Display panel can be recessed or surface-mounted
• For heaters up to11kW (over 11kW up to 18kW requires an UKU extension box)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 122-230F
• Delayed start-up to 48hrs in advance
• Built-in Wi-Fi interface for HUUM mobile app
• 8 Language options: English, German, Russian, Italian, Finnish, Polish and French
• Unlimited number of users
• Notification when set temperature is reached
• Inside/outside sauna room installation
• Optional smart heating setting
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation or steamer (not included)
• Overheat protection
• Child safety lock

HUUM Embedding Flange

• Stylishly covers wood edges around embedded heaters
• For use with HIVE Mini sauna heaters
• Stainless steel construction
• Measures 18.31"" inside diameter, 24.61"" outiside diameter

HUUM Safety Rail

• Beautiful light-colored wooden arcs complement the design of the heater
• For use with HIVE Mini sauna heaters
• Stainless steel supports to attach to heater
• Stainless steel wall brackets
• Helps prevent accidental contact with heater
• Measures 21.85" diameter

HUUM Stones

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

• HUUM HIVE Mini 11
• HUUM UKU Control (Mirror)
• HUUM embedding Flange
• HUUM Safety Rail
• 10 boxes of Small (5-10 cm) Sauna Heater Stones
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

Hive Installation & Operational Manual .pdf

HUUM Hive Sauna Heater IOM.p

Hive Mini Spec Sheet

HIVE Specs.pdf

HIVE Mini Elements Required

Hive mini elements required.pdf

HUUM Certificate of Compliance

HUUM Certificate of Compliance

UKU Installation & Operational Manual

UKU Installation & Operational Manual

UkU Install Diagram

Uku Glass.Miro Install Diagram.pdf

HUUM-UKU Installation Diagram.pdf

UKU Installation Video

Warranty

Huum-Warranty.pdf

Stone Requirements

HUUM Stone Requirements 242302.pdf

Stone Placement Video
